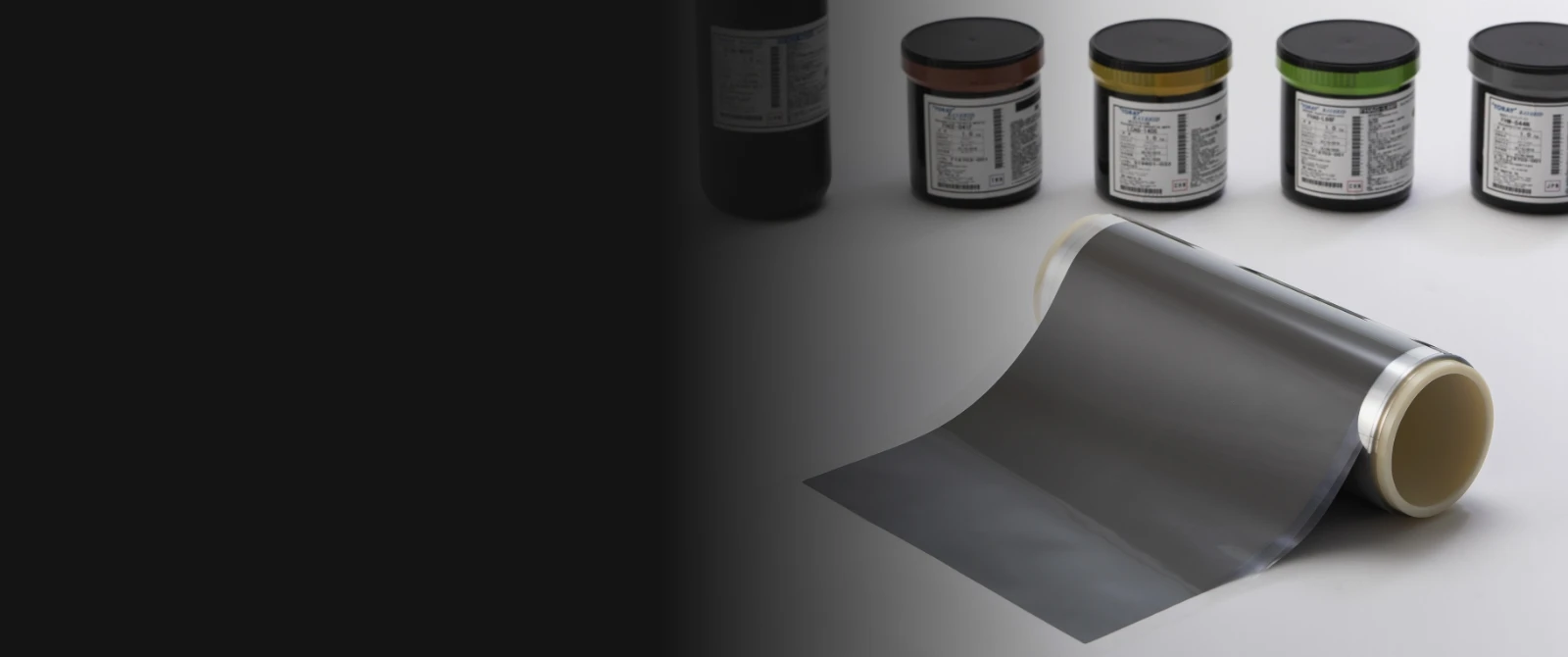

Photosensitive Conductive Paste
RAYBRID™
RAYBRID™
Mounting locations
- Displays
- Interiors
Benefits
Fine-line
processing enabled by photosensitivity
contributes to the higher performance
and higher resolution for devices.
RAYBRID™ is a conductive material used in photosensitive processes, and excels at fine wiring patterning. Adoption in touch panels, heaters, antennas, EMI shielding, etc. is being explored.
Enables delivery of high-performance automotive devices while balancing design, functionality, and manufacturability.
Features
Simple process

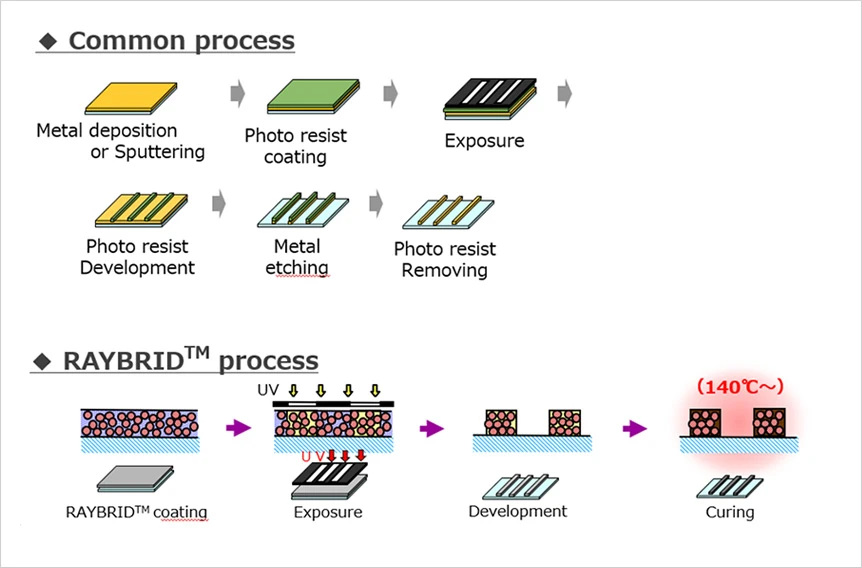

This process is simpler than metal etching, consisting of four steps: coating film formation, UV exposure (negative), alkali development, and heat treatment.

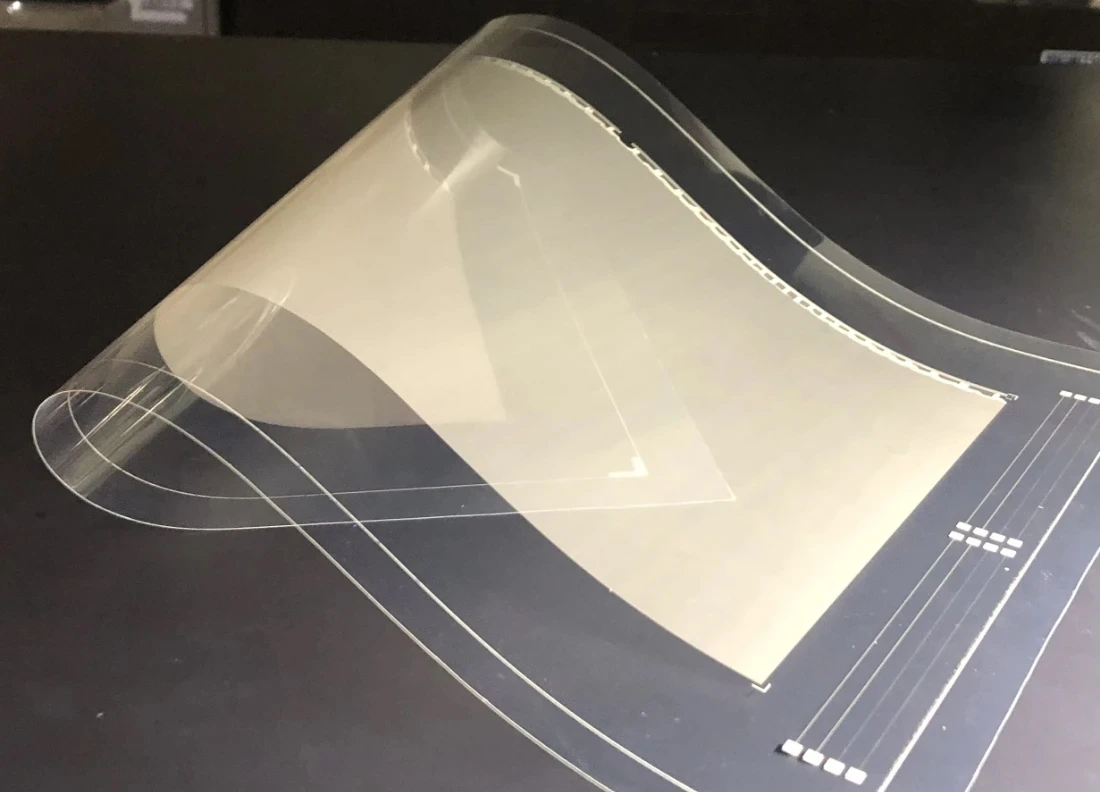

Flexibility
(Cured type)
Since the conductive particles in the dry film are dispersed in the resin, it is a composite material between the resin and the conductive particles. In order to impart photosensitive characteristics, the design contains a high resin content. This makes the wiring itself flexible and difficult to crack.

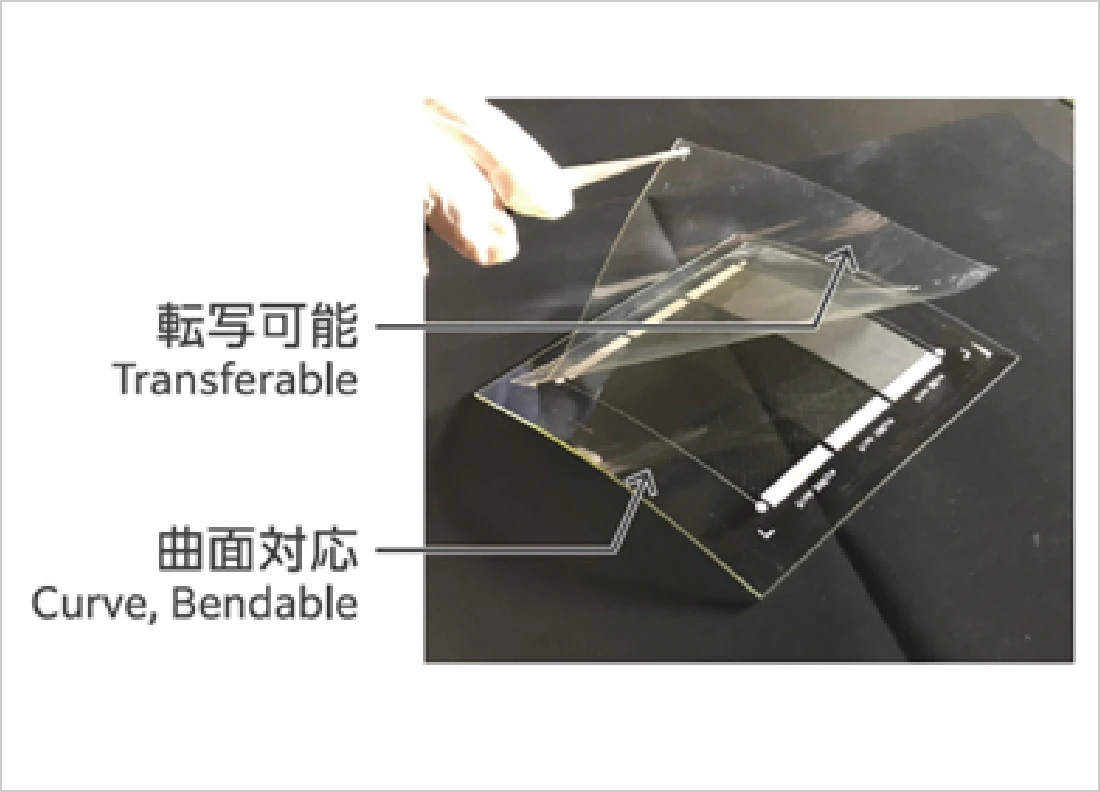

Transferability
It is possible to form a pattern on a release film and transfer the formed pattern by heat transfer. This will also enable the use of curved substrates, expanding the range of base material options.
Use Cases
#01

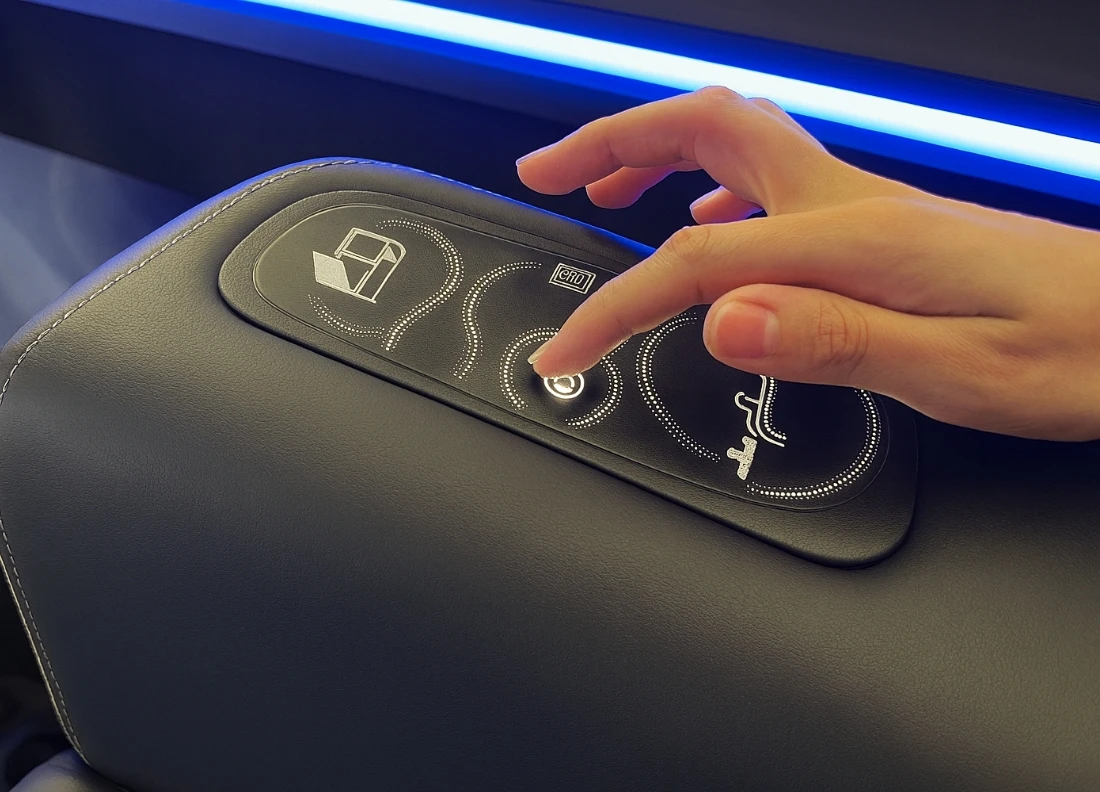

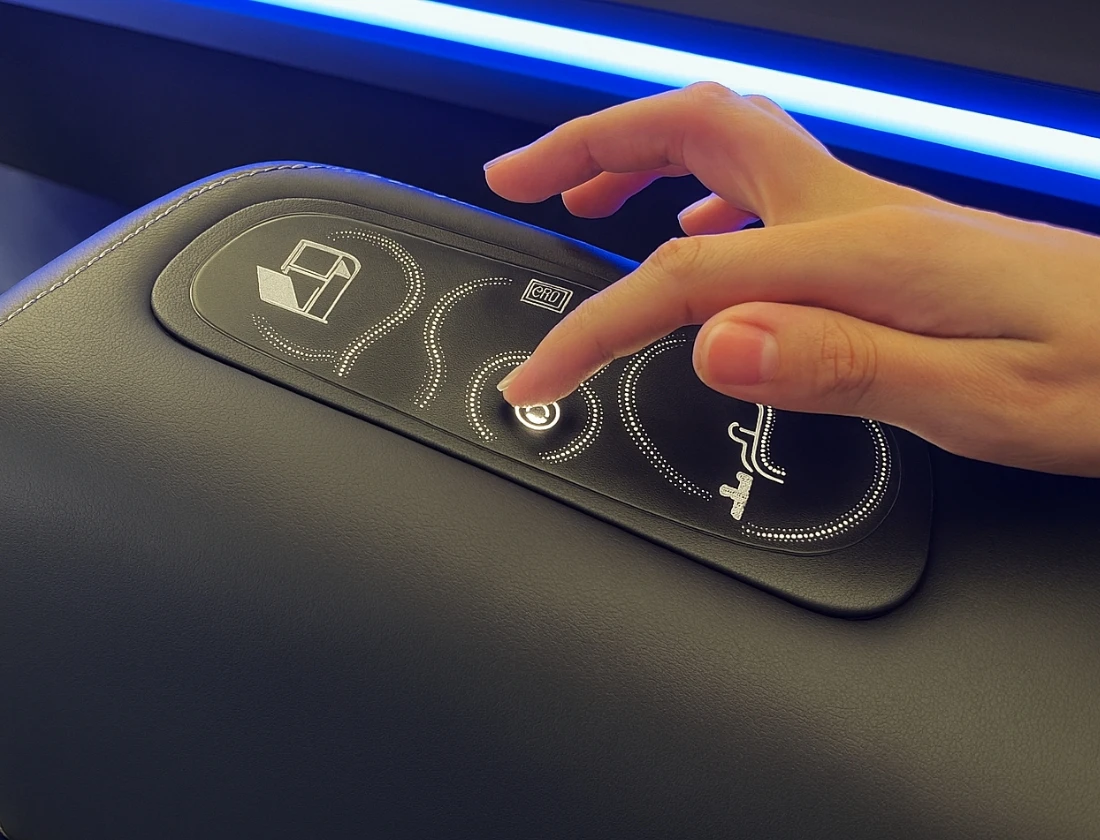

Creating lighting effects with light-transmissive switches
By forming metal mesh wiring using RAYBRID™, the light transmissivity can be increased and enabling stealth switches.
#02

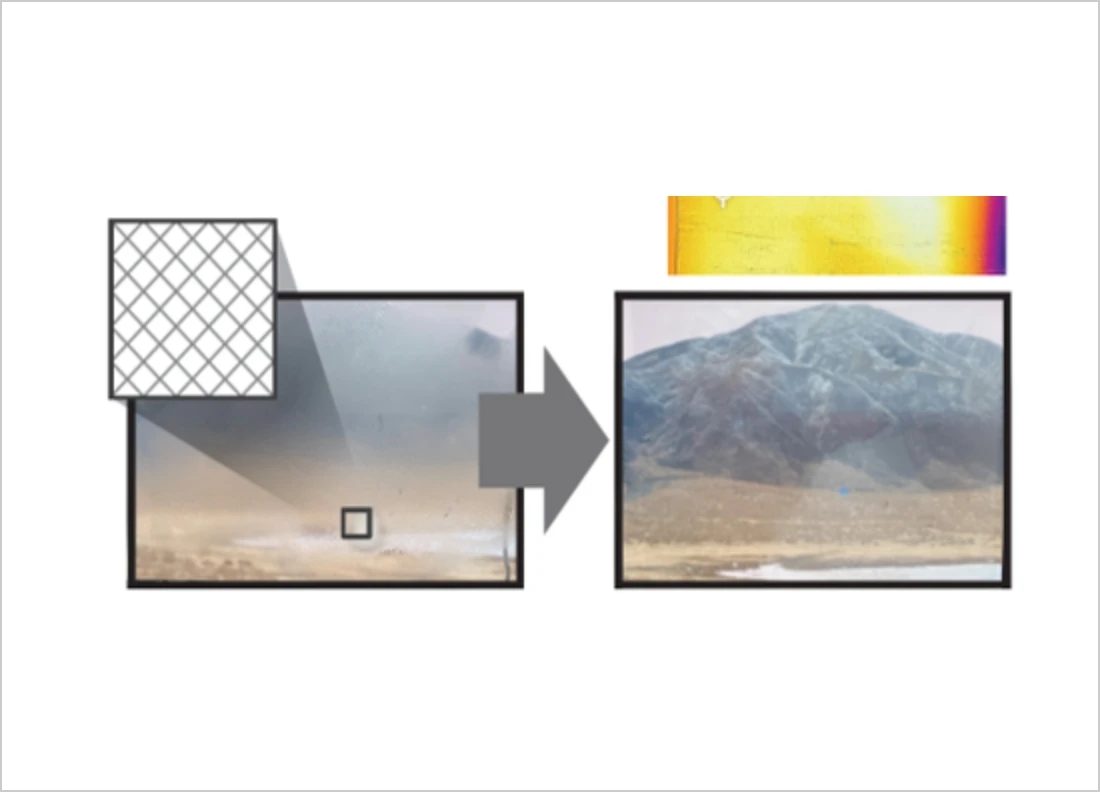

Micro-wiring and
transparent heater
™By using RAYBRID to form a fine mesh structure with a visible light transmission rate of 90% or more on the base material, the system is expected to be deployed in stealth heaters.
#03

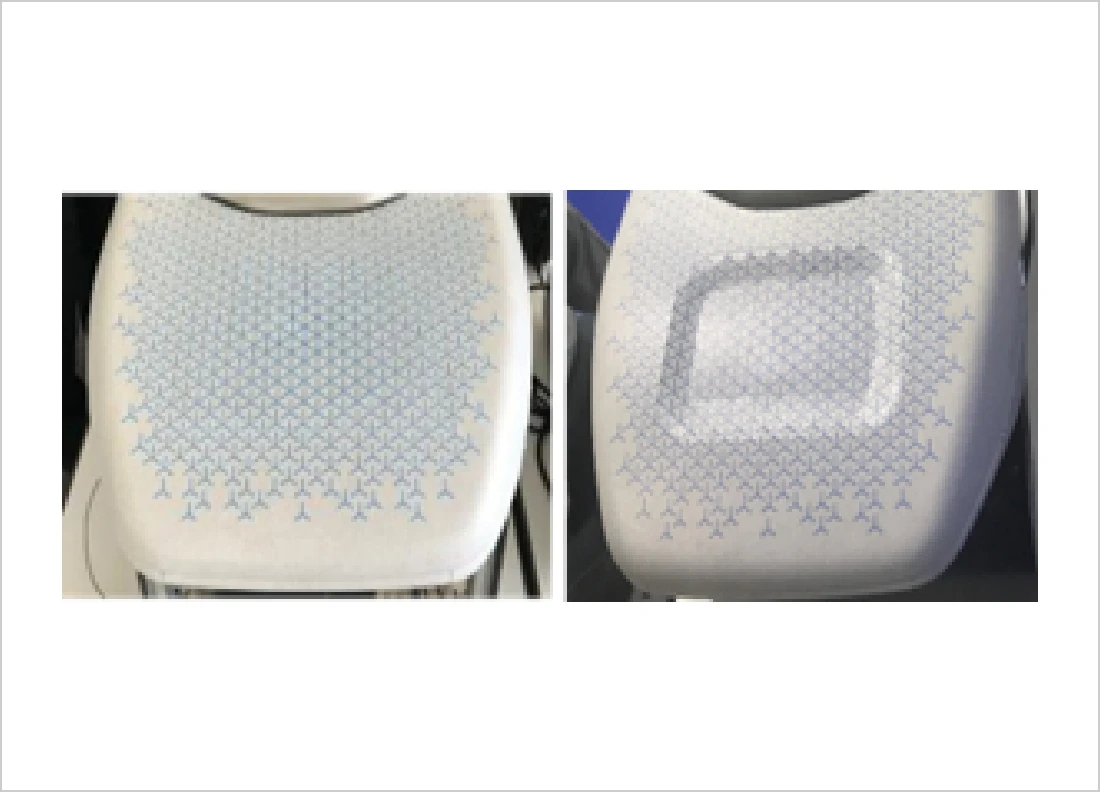

Hovering sensor that creates a sense of wonder
Using RAYBRID™ to position the hovering sensor functionality beneath various surface materials, enables deployment of hovering sensors triggered by any movement of the occupant.
Related Products
Related Products
Photoblack™
While concealing the IR camera, its superior IR permeability does not compromise camera performance, contributing to improved interior design and safety.

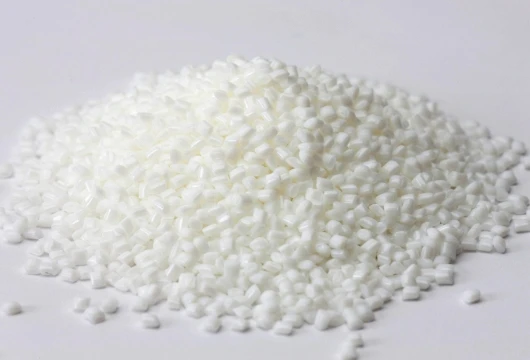

TORAYCON™
Offers exceptional strength, heat resistance and dimensional stability, contributing to the reliability, safety, and weight reduction of electronic components and powertrain components.

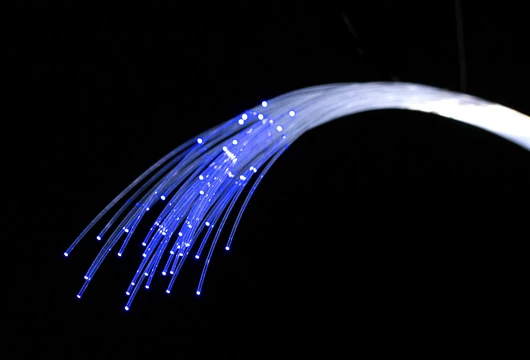

RAYTELA™
